库存件

In stock

BIGTREETECH

Panda Touch V1.0

5-inch capacitive touchscreen

$61.56

⚡Free shipping on orders over $70.⚡

More information regarding shipping & delivery

Features & Advantages

For Bambu Lab X1, P1 & A1 series
Responsive, with intuitive controls
5-inch capacitive display
Wireless connection with WiFi

Item no. BIQU-1060000723

Category: Spare parts & upgrades for certain brands

Product information & technical details

Item no.: BIQU-1060000723
Manufacturer No.: 1060000723
Manufacturer: BIGTREETECH
Product type: Displays
Compatible with 3D Printers : Bambu Lab A1 mini, Bambu Lab A1, Bambu Lab P1P, Bambu Lab P1S, Bambu Lab X1, Bambu Lab X1C, Bambu Lab X1E
Printer Display: Touch Display
Authorised representative serving as the EU responsible person.: XDH Tech, 2 Rue Coysevox Bureau 3, 69001, Lyon, France, xdh.tech@outlook.com

Description

Panda Touch is a responsive 5-inch capacitive touchscreen with intuitive controls that is compatible with Bambu Lab 3D printers from the X1, P1 and A1 series.

Characteristics:

Plug and Play: Unpack the display and start your creative journey;

Custom UX and UI system;

Responsive for intuitive control;

Power supply via a USB-C interface (special holder is included);

Wireless connection with WiFi 2.4G for more flexibility and security; Printing from an SD card is supported;

Simultaneous control of multiple 3D printers (management of up to 10 devices);

Offline printing, monitoring and control functions;

Uncomplicated AMS management and effective administration of AMS units;

30-minute battery life; Charging of the built-in lithium battery via a magnetic base with 5 magnets.

You can find out more about installation, firmware, UI, etc. HERE

Included:

1 x Panda Touch
1 x Magnetic Charging Station
1 x User Manual
1 x Mounting Bracket
1 x Packaging Box
1 x M3x6 Flat Head Countersunk Head
4 x screw (FHCS)
1 x USB Charging Cable
1 x Hex Key
1 x BTT Duck

Technical specifications:

MCU	Xtensa 32-bit LX7 dual-core ESP32S3R8, up to 240 MHz

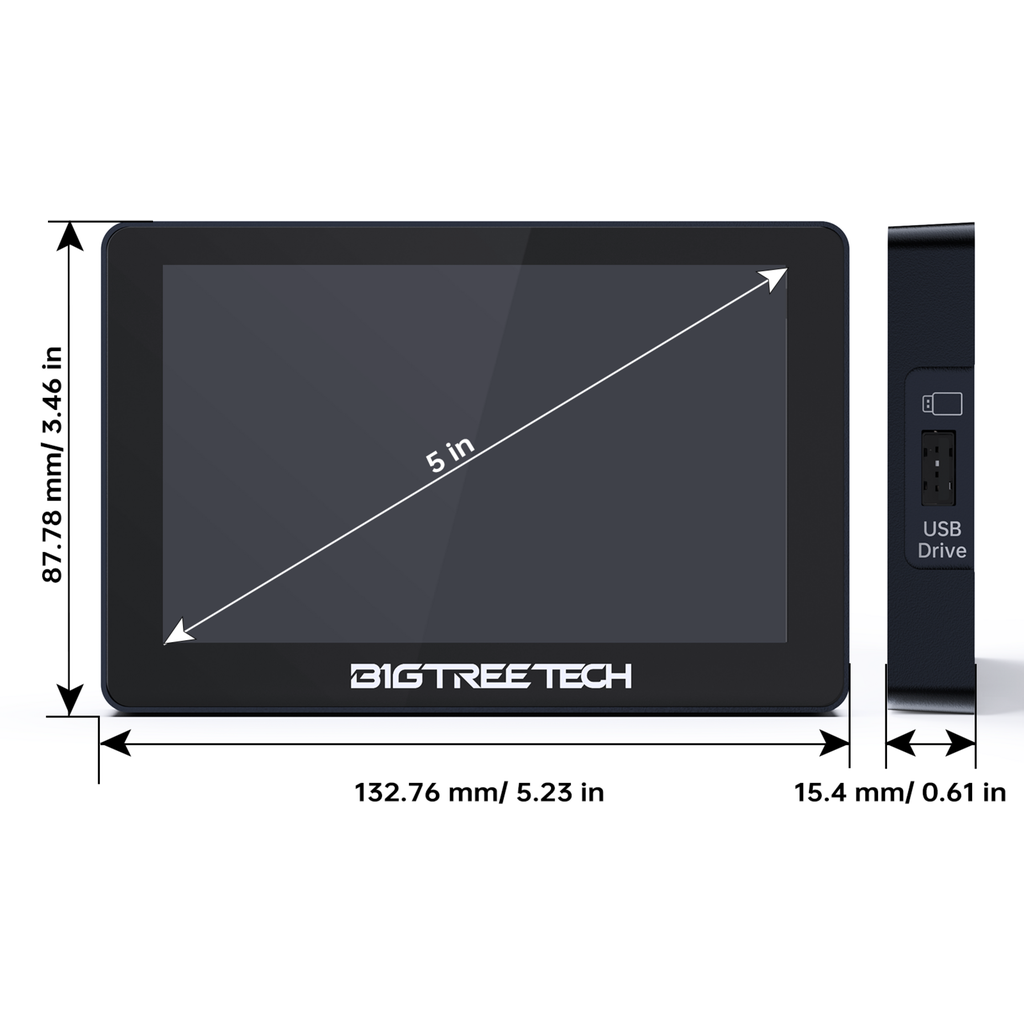

Display size	5 inches
Display	Full-view IPS with 16.7M colors
Operating temperature	0-60¡ãC
Logic voltage	3.3V
Recharge time	1.2 hours
Storage	PSRAM-8MB, Flash-16MB
Resolution	800x480 pixels
Communication	2.4G WiFi (IEEE 802.11 b/g/n)
Operating voltage	5V 0.5A (max. 0.7A)
Battery	up to 0.5 hours
Expansion interfaces	I2C for temperature and humidity sensors, USB drive
