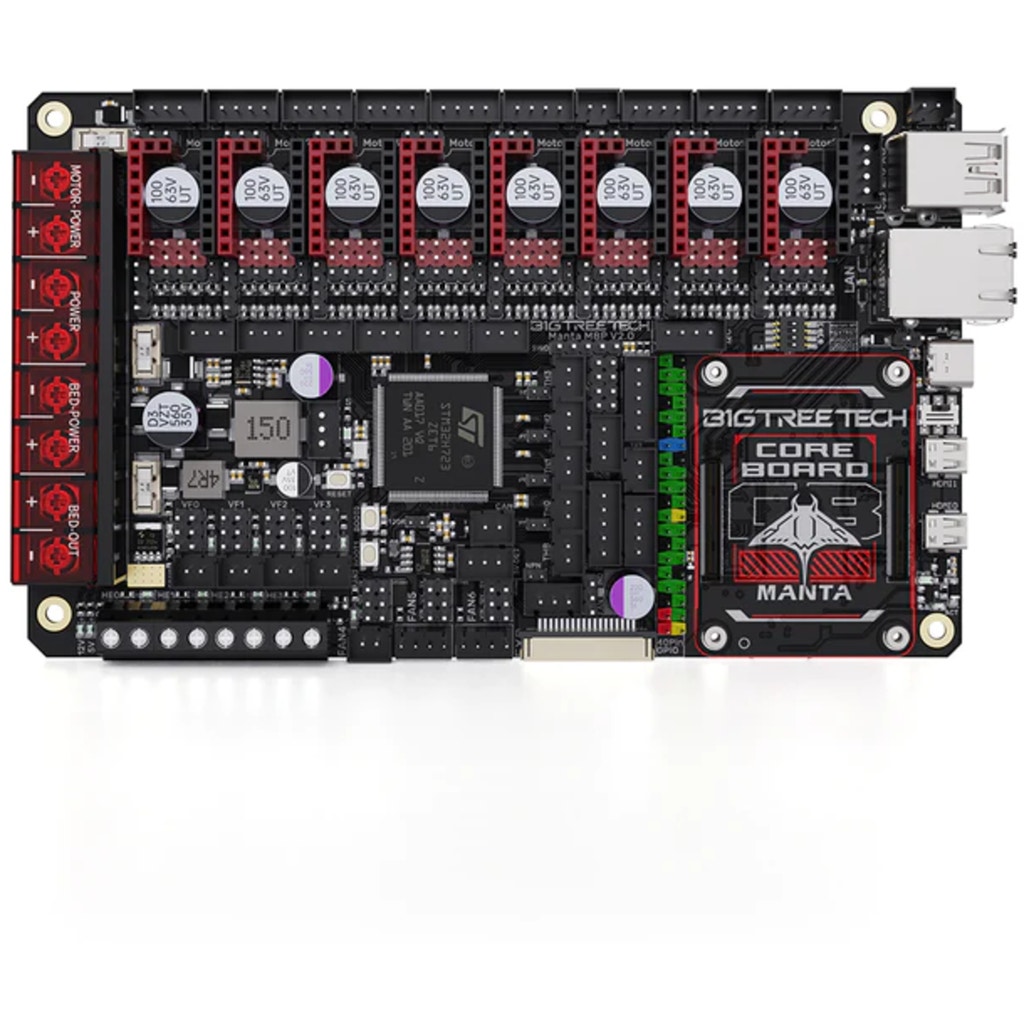

Manta M8P V2.0
Versatile 32-bit motherboard
$66.94
⚡Free shipping on orders over $70.⚡
Related:
Features & Advantages
- 32-bit ARM? Cortex-M0+ STM32H723ZET6
- Versatile upgrade options
- eFuse circuit protection
Product information & technical details
- Item no.: BIQU-1020000442
- Manufacturer No.: 1020000442
- Manufacturer: BIGTREETECH
- Product type: Mainboards & Circuit Boards
- Authorised representative serving as the EU responsible person.: XDH Tech, 2 Rue Coysevox Bureau 3, 69001, Lyon, France, xdh.tech@outlook.com
Description
Manta M8P V2.0 from BIGTREETECH is a versatile 32-bit motherboard with numerous interfaces for a variety of upgrade options. The mainboard is compatible with Klipper, Raspberry and Marlin open-source software, and in combination with CB1 it is ideal for Voron 2.4 and VzBoT.
Main features:
- 32-bit ARM? Cortex-M0+ STM32H723ZET6 550 MHz for a faster frequency,
- BTB connection for all CM4 versions as well as CB1,
- 5A for Raspberry Pi with TPS5450-5A power supply chip,
- 3 different voltages for CNC fan connections (5V, 12V and 24V),
- Interfaces such as I2C, 5V Servo, Expanded IO and TFT,
- Reserved CAN bus connection for connection to EBB-CAN ensures simplified cabling,
- Supports various expansion ports and modules (BL Touch, LCD screen, RGB light, auto shutdown, etc.),
- Additional eFuse circuit protection.
Board-to-board connectors
The mainboard has the same connector as Raspberry Pi and can therefore be connected to all versions of CM4 and CB1. Screw-reinforced installation is supported.
eFuse for a high-end electronic fuse
The board features eFuse, a high-end electronic fuse. If an overload occurs, eFuse ensures faster shutdown; When the overload is over, an automatic restart occurs. The high-precision eFuse protection detects faults in the circuit and prevents short circuits.
Technical specifications: Manta M8P V1.1 vs. Manta M8P V2.0
| Manta M8P V1.1 | Manta M8P V2.0 | |
| MCU | STM32G0B1VET6 | STM32H723ZET6 |
| Frequency | 64MHz | 550MHz |
| Driver slots | 8th | |
| eFuse | Yes | |
| Fan port | 5 x 2-Pin PWM Fans 2 x 4-pin PWM fans 1 x Always On Fan 1 x SoC Fan | |
| Fan voltage | Freely selectable, 5V, 12V or 24V | |
| Number of heating cartridge connections | 4 | |
| Thermistor | 5 x 100K NTC | |
| USB | 1 x USB OTG or UART to USB 3 x USB Host 2.0 | |
| HDMI | 2 x Micro HDMI | |
| i2C interface | No | Yes |
| CAN bus interface | Yes | |
