ADXL345 V2.0

ADXL345 V2.0 is a module for compensating printer resonances. The module meets Klipper input shaping requirements by accurately measuring resonant frequencies and reducing ripple effects at high speeds and accelerations.

? Difference between S2DW V1.0 and ADXL345 V2.0 :

The only difference between ADXL V2.0 and S2DW is the chip version (LIS2DW on S2DS V1.0 vs. ADXL345 on ADXL V2.0).

While the chips offer the same acceleration measurement functions, LIS2DW also impresses with higher sensitivity, lower noise and improved temperature stability.

USB-C plug-and-play

Connect the ADXL345 module to your printer with Klipper firmware and take advantage of the powerful MCU hardware SPI for data sampling and communication. The board is compatible with various host systems and can be easily connected to Raspberry Pi or Manta boards + CB1 with USB ports (using a standard USB-A to USB-C cable).

Effortless wiring and long-lasting connections

ENIG mounting holes for stable connections and durability,

Prepared soldering points for easy wiring adjustment.

Flexible mounting options

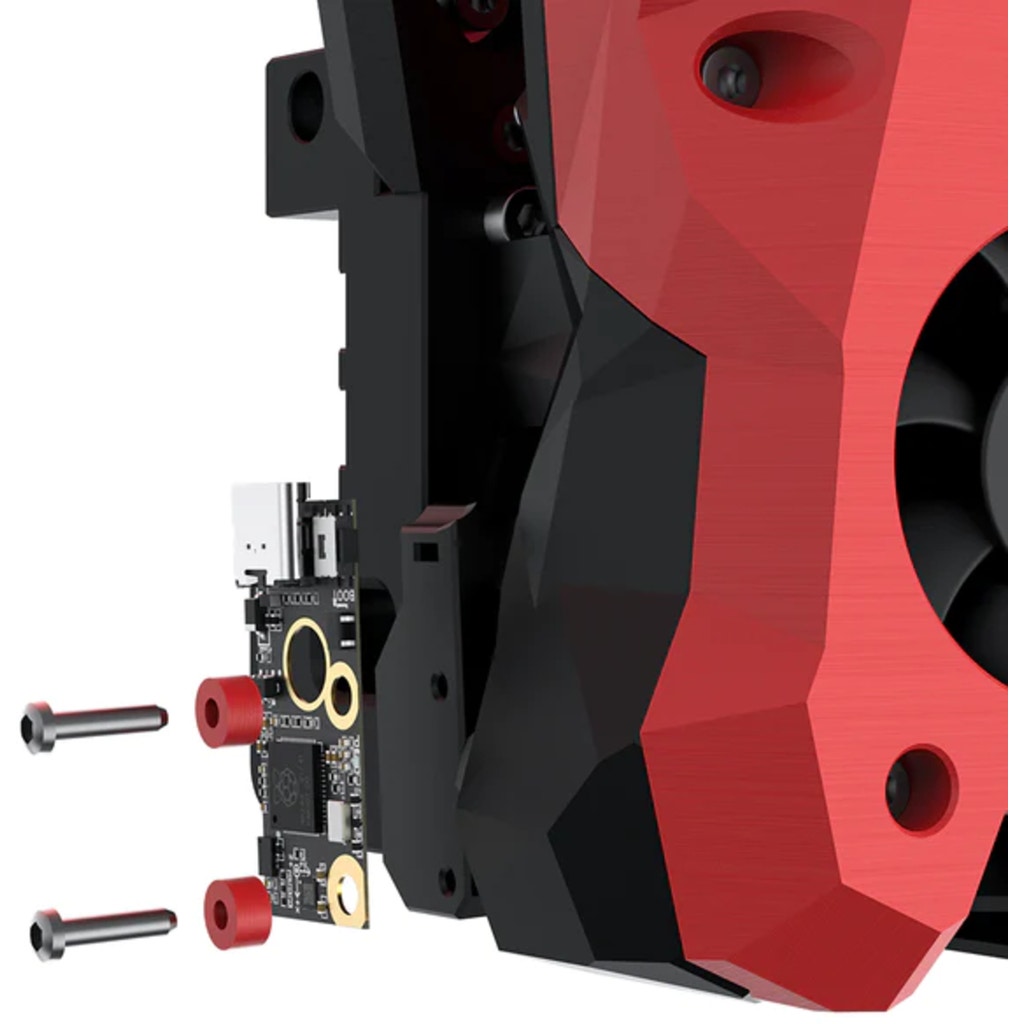

Method 1: StealthBurner direct assembly

Install the ADXL345 V2.0 module in the designated location to simplify the setup process.

Method 2: Nozzle assembly

Remove the original nozzle and install it in the intended nozzle position for more accurate measurements.

The accessories (screw and silicone rings) for easy installation are included.

Included:

• 1 x ADXL345 V2.0
• 1 x Packaging Box
• 1 x M6x8 socket
• 1 x Cylinder Head Screw
• 2 x M6x13x2 silicone ring

Technical specifications:
