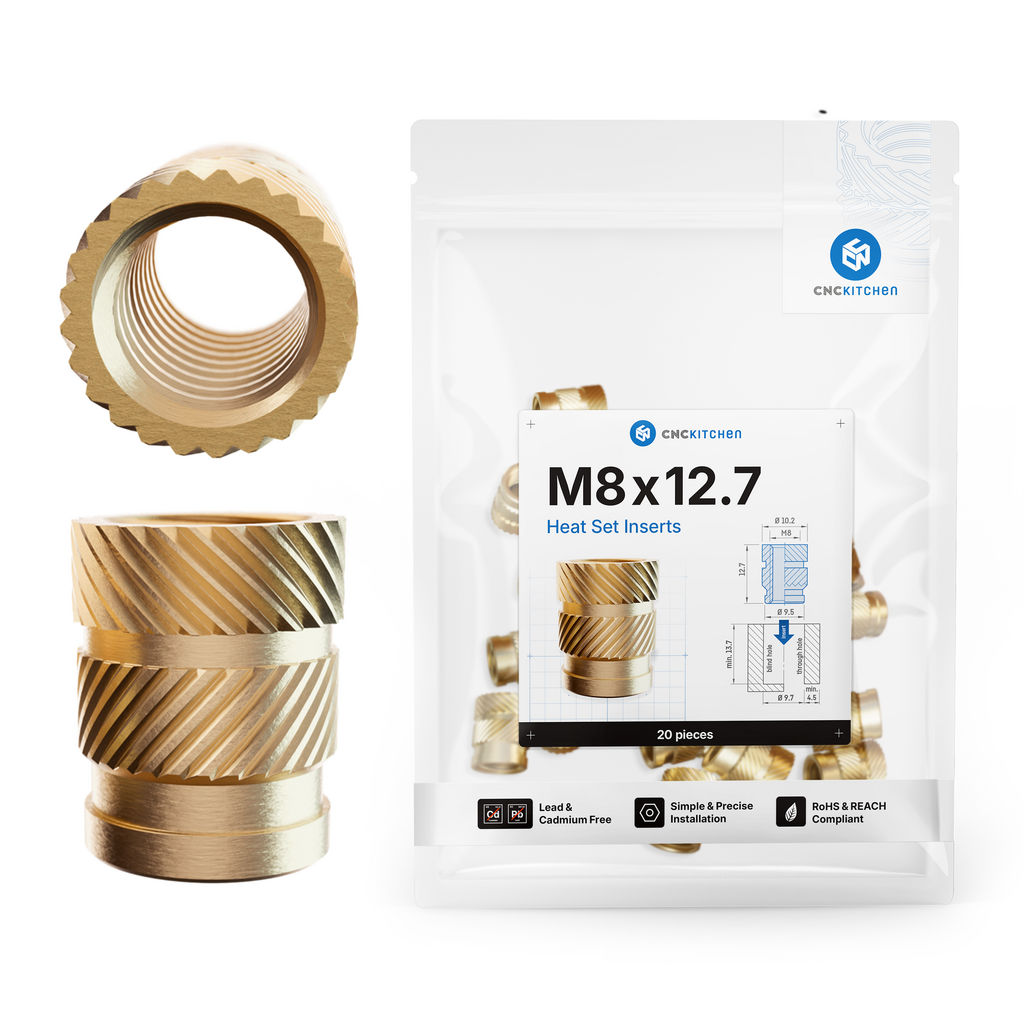

Threaded Inserts M8 Standard, M8 x 12.7 (20 pcs)
Precision-milled brass alloy inserts
$4.99
⚡Free shipping on orders over $70.⚡
Related:
Features & Advantages
- Made of brass alloy
- For thermoplastics
- Free from cadmium & lead
- Contents: 20 pieces
Product information & technical details
- Item no.: CNC-4262391010044
- Manufacturer No.: M8x12,7
- Manufacturer: CNC Kitchen
- Product type: Hardware
Description
The CNC-milled threaded inserts made of high-quality brass alloy are practical accessories that can be used to convert 3D-printed plastic parts (made of PLA, PETG, ABS, etc.) into practical and versatile components.
The cadmium and lead-free threaded inserts are inserted or melted into place with a soldering iron. They increase the strength of the resulting connection by connecting the threaded insert to the material and staying firmly in place.
Tip: For maximum connection strength, install the brass inserts at a temperature that is 10-20¡ãC higher than the printing temperature. CNC Kitchen also recommends that only 90% of the threaded inserts should be melted with a soldering iron - the rest can be fitted into the component with a tool.
Advantages at a glance:
- suitable for all thermoplastics
- also suitable for SLA resin (Note: the inserts are glued in this case!)
- cadmium-free and lead-free
- REACH and RoHS compliant
- durable and robust
- creates strong connections

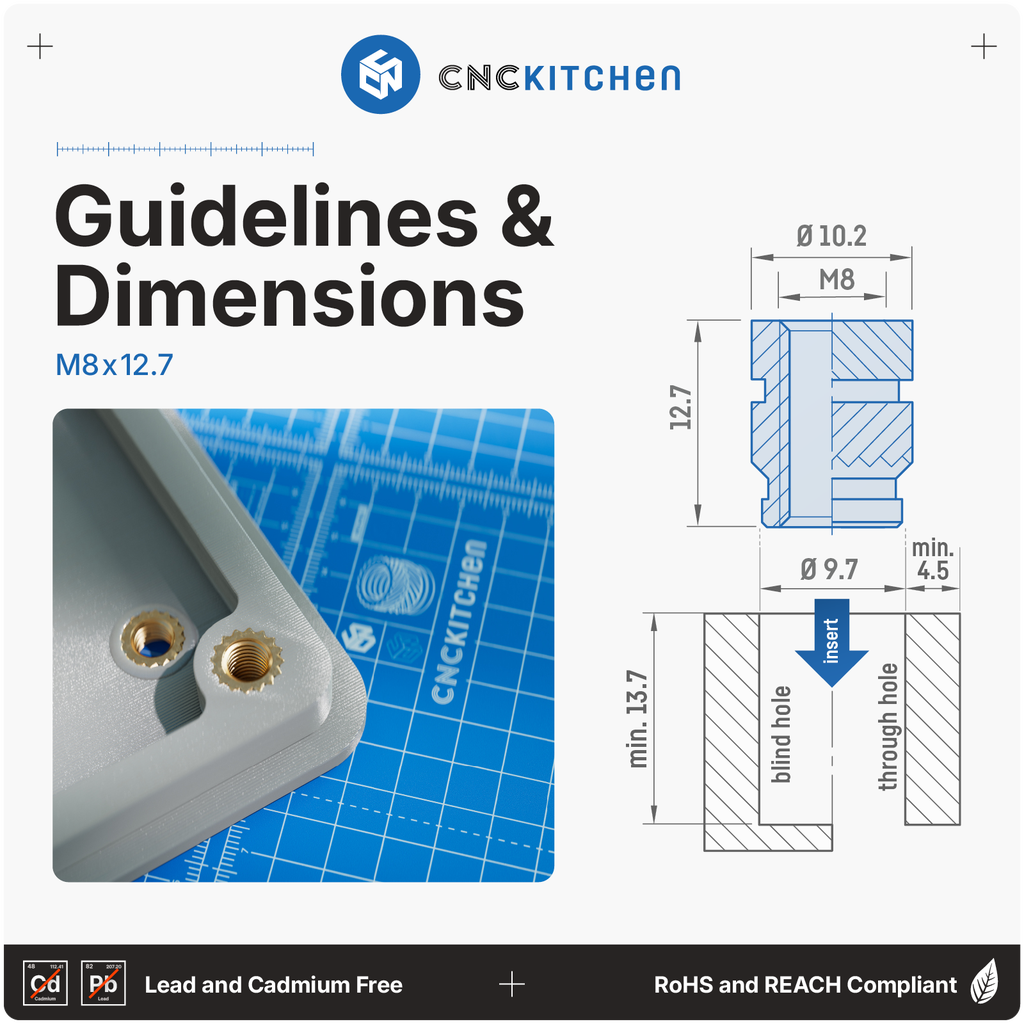

The set contains 20 pieces of M8 standard (M8x12.7) threaded inserts.

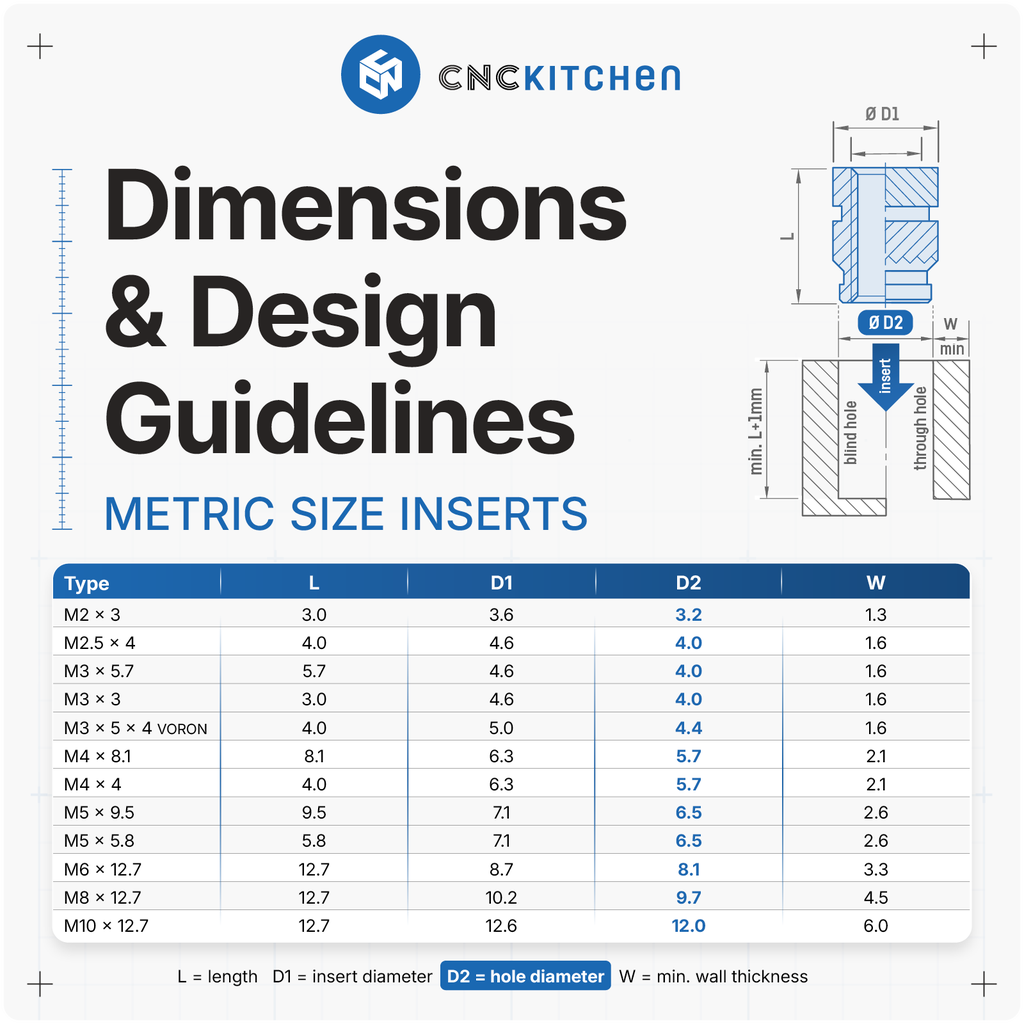

CNC-Kitchen threaded inserts in comparison:
| Thread size | Length type L | Insert diameter ? D1 | Centre tip ? D2 | Hole diameter ? D3 | Wall thickness min. W |
| M2 | 3.0 | 3.6 | 3.1 | 3.2 | 1.3 |
| M2.5 | 4.0 | 4.6 | 3.9 | 4.0 | 1.6 |
| M3 | 5.7 | 4.6 | 3.9 | 4.0 | 1.6 |
| M3 Short | 3.0 | 4.6 | 3.9 | 4.0 | 1.6 |
| M3 Voron | 4.0 | 5.0 | 4.25 | 4.4 | 1.3 |
| M4 | 8.1 | 6.3 | 5.5 | 5.6 | 2.1 |
| M4 Short | 4.0 | 6.3 | 5.5 | 5.6 | 2.1 |
| M5 | 9.5 | 7.1 | 6.3 | 6.4 | 2.6 |
| M5 Short | 5.8 | 7.1 | 6.3 | 6.4 | 2.6 |
| M6 | 12.7 | 8.7 | 7.9 | 8.0 | 3.3 |
| M8 | 12.7 | 8.7 | 9.5 | 9.7 | 3.3 |
| 1/4''-20 | 12.7 | 8.7 | 7.9 | 8.0 | 3.3 |
