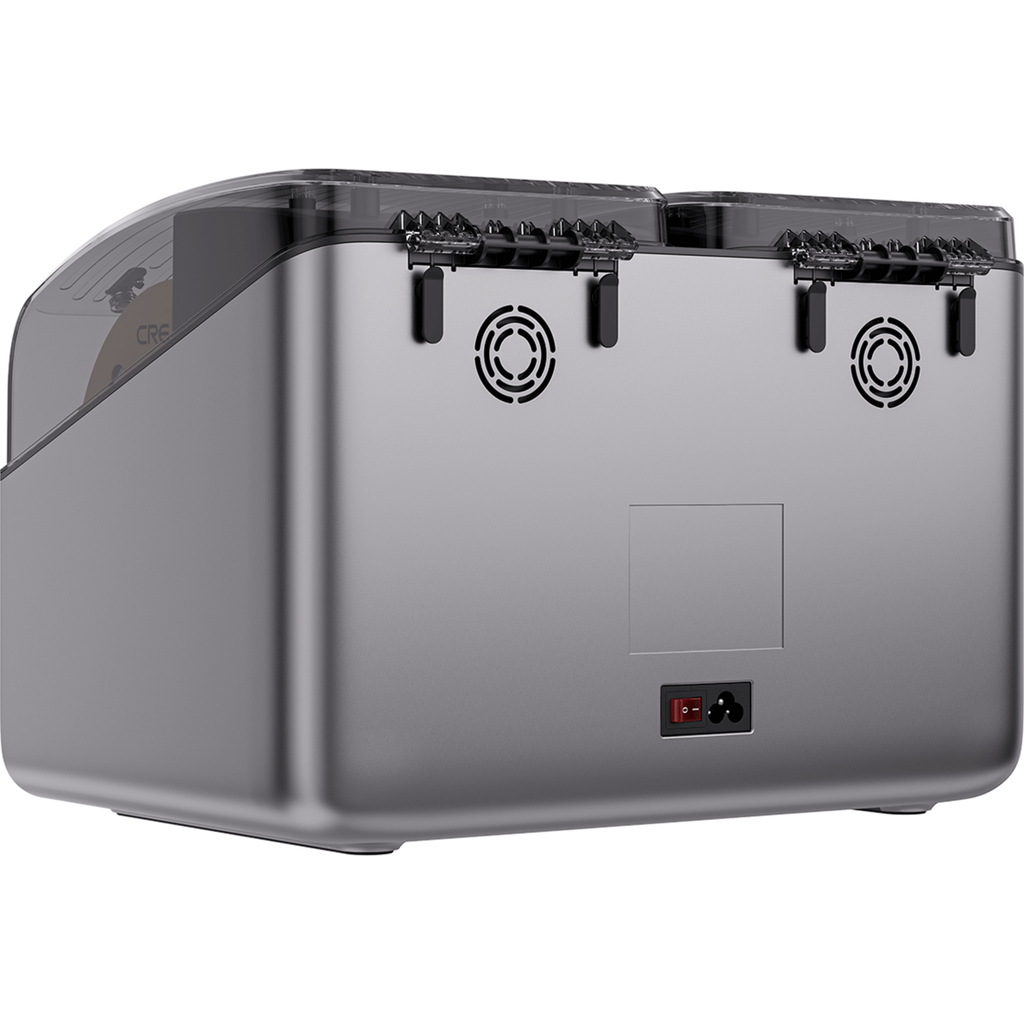

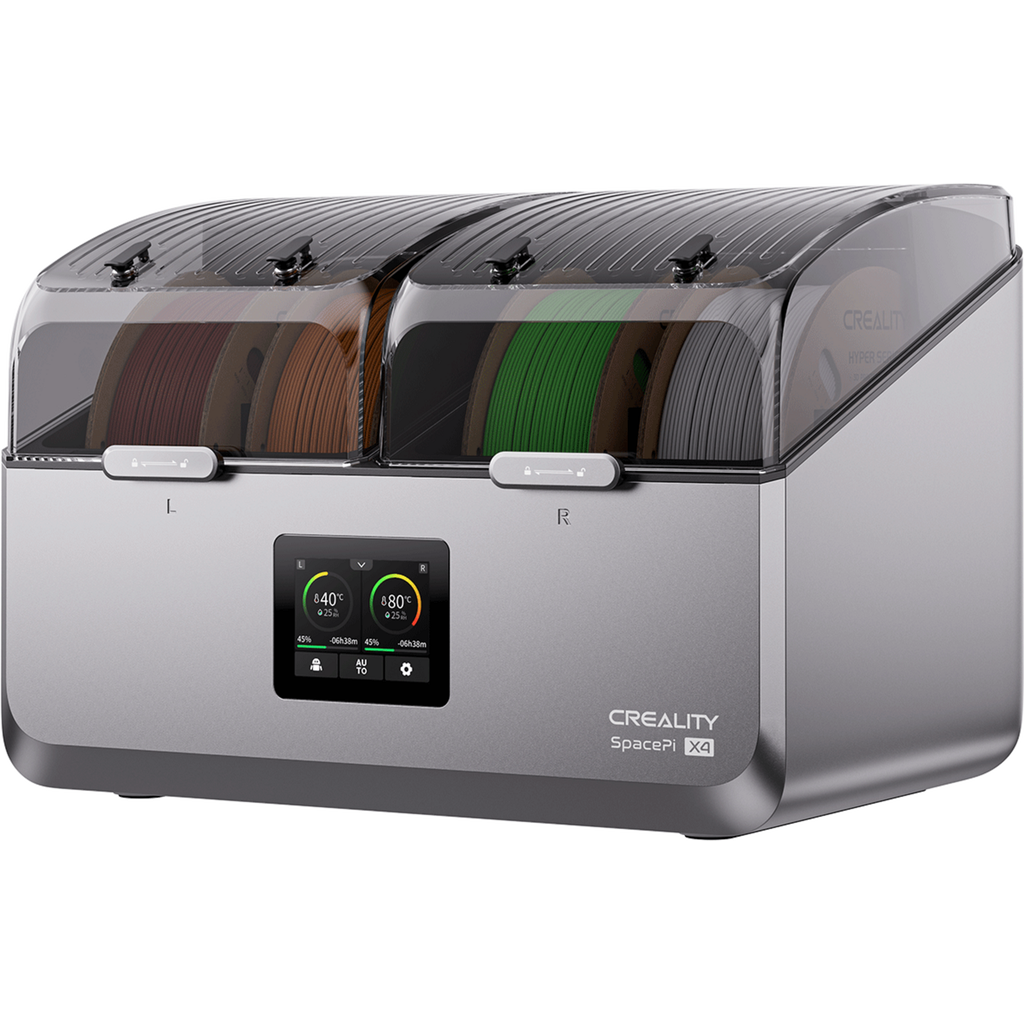

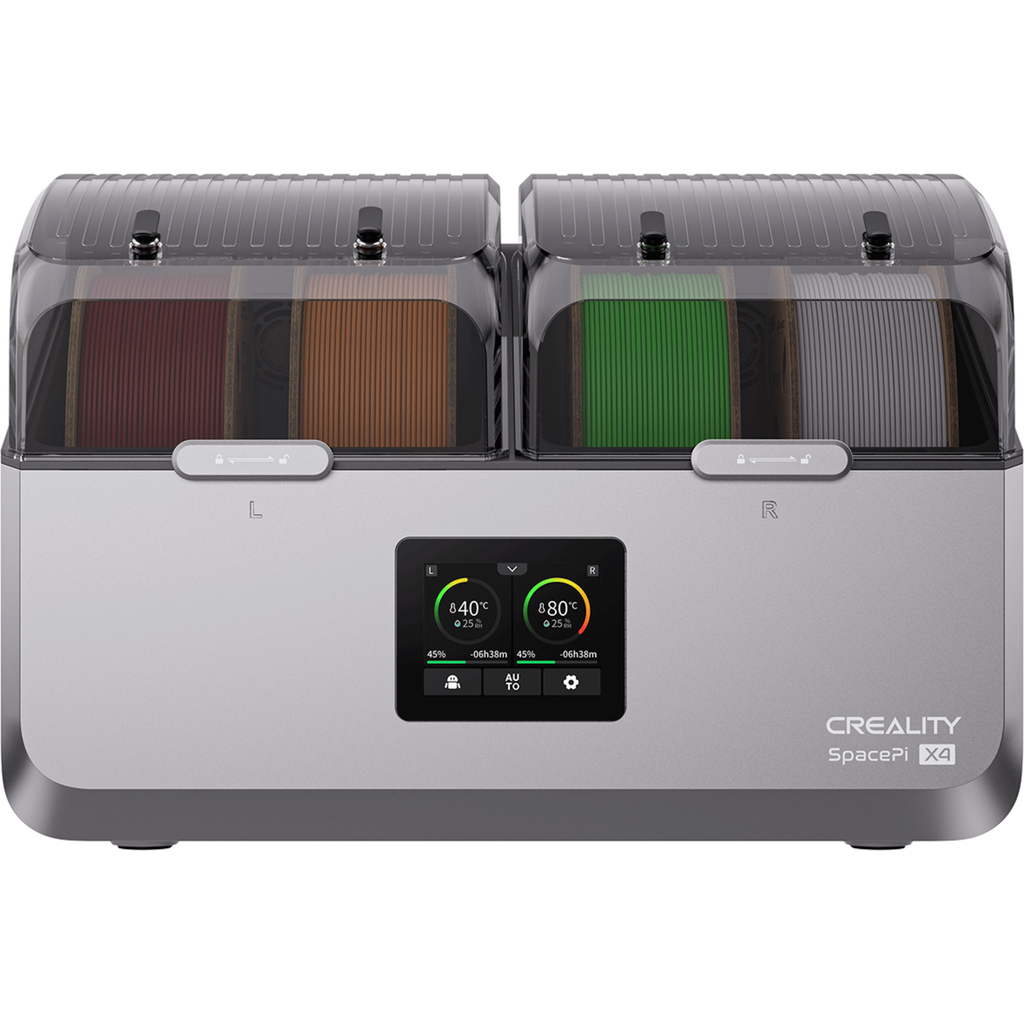

SpacePi X4 Filament Drying Box

Damp filaments have a negative effect on print quality and are therefore every 3D maker's nightmare. With the smart SpacePi X4 drying box from Creality, you can dry up to four spools at the same time and keep your filament in top shape!

Compatibility:

• 1 kg & 2 kg spools,
• 1.75 mm & 2.85 mm filament diameter,
• Max. spool size: diameter ¡Ü 200 mm, width ¡Ü 150 mm,
• Up to 4 spools simultaneously.

Note: The filament spools are NOT included in the contents of delivery!

Multicolour printing? Multiple drying? Easy!

The SpacePi X4 makes multicolour and multi-material printing a breeze! While you print, the box ensures that your filament stays perfectly dry. So everything runs like clockwork - without stringing, clogging or layer shift.

Note: PTFE tubes are not included in the contents of delivery!

Power heating element for power filaments

With 200W + 200W PTC heating and a temperature of up to 85 °C, the SpacePi X4 keeps even demanding filaments such as PAHT, PA or PC on track. The clever insulation keeps the heat in the chamber and ensures a constant temperature.

Tip: Please bear in mind that High Temperature Drying requires heat-resistant spools!

Two chambers, double the control

The SpacePi X4 is equipped with two separate chambers, each of which has its own heating circuit. What this means for you: Different temperatures for different filaments, all at the same time! PA-CF in one, TPU in the other? No problem.

You can opt for either single or dual-chamber operation. Used individually, the SpacePi X4 saves up to 40 % energy - saving you money and the environment.

Why do you need SpacePi X4?

Because moisture is the final enemy for your filament! The SpacePi X4 ensures that your spools are always dry. And at 85 °C, the device dries engineering filaments such as PA-CF, PAHT or PPA almost 50 % faster.

Recommended drying temperatures:

SpaceDry 4.0 technology - intelligent hot air and active dehumidification

• 360¡ã hot air circulation for constant heat and even drying.
• Desiccant regeneration with automatic regeneration of the desiccant - no refilling necessary!
• Active dehumidification with double fans that blow out the moisture before it causes trouble.
• One-way valve, to keep the chamber sealed after drying.

Further features:

• Moisture-proof design,
• Easy-to-use, intuitive 3.2 inch touchscreen,
• Intelligent functions such as Active Silent mode, beep sound when drying is complete and additional light,
• Multiple safety features: intelligent self-checks for early detection of problems, automatic stop at abnormal fan speeds, PTC fuse with self-reset at excessive temperatures, NTC sensor at the air outlet for monitoring the temperature and automatic drying pause in the event of problems,
• Practical top/rear outlet design,
• Easy-to-operate slide lock,
• Anti-scald rollers.

Technical specifications:
