Saturn 4 Ultra 16K Bundle
High resolution printing meets clean!
$527.04
⚡Free shipping on orders over $70.⚡
Related:
Features & Advantages
- Build volume of 211.68 x 118.37 x 220 mm
- 16K resolution
- Resin heating tank
- Wash & Cure
Product information & technical details
- Item no.: ELG-SAT4U16KB2
- Manufacturer: Elegoo
- Product type: 3D Printers
- Light source: LCD
- Assembly: Fully assembled
- Printing Technology: UV LCD
- Printer Display: Touch Display
- Supported operating systems: Windows (7+), Mac OS X (10.7+), Linux (Ubuntu 12.04+)
- Interfaces: USB - Connection, WIFI - WLAN
- Supported Formats (Slicer): STL, OBJ
- Build volume: 211.68 x 118.37 x 220 mm
Description
Do you want uncompromising quality, sharp details and stress-free post-processing? Then the Saturn 4 Ultra 16K Bundle is made for you! This power package combines Elegoo's latest 3D printing generation with a matching cleaning and curing station - available in two practical versions. This not only makes your workflow more efficient, but also really clean!

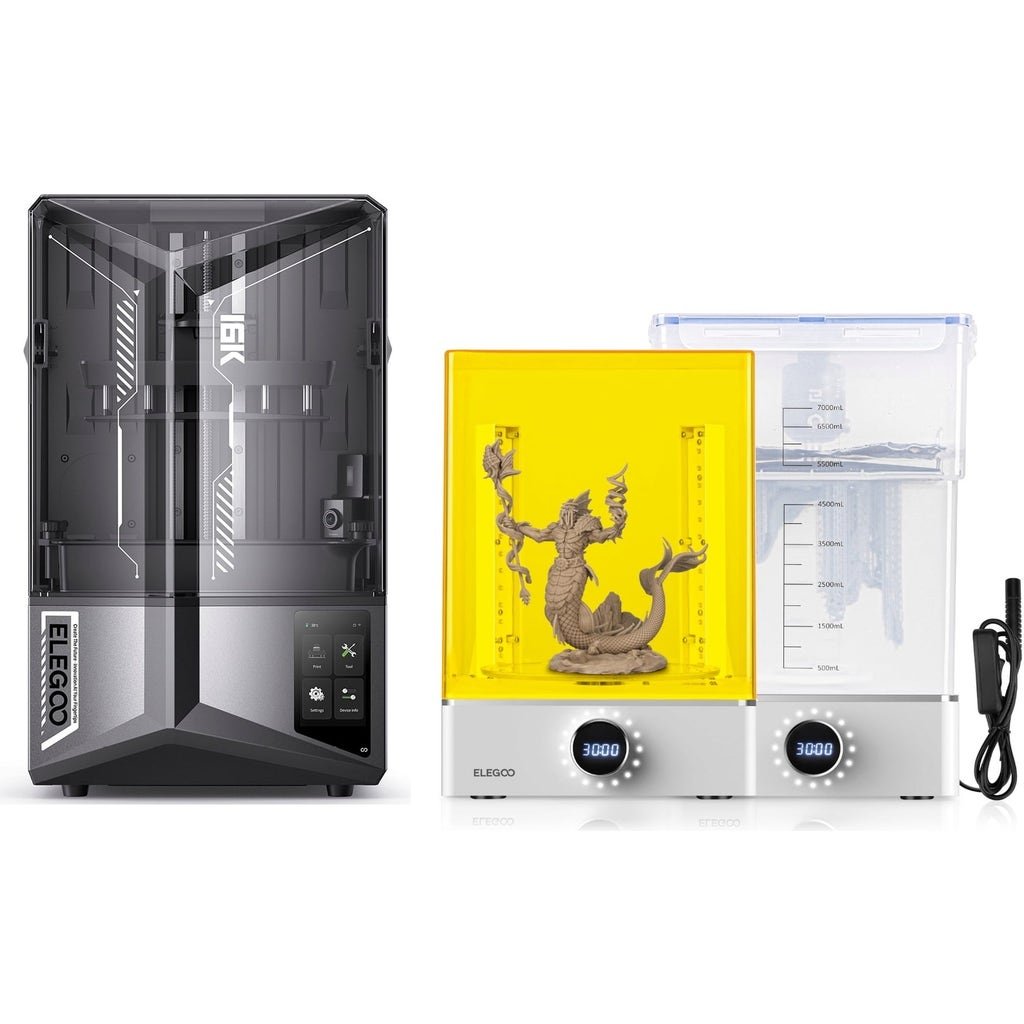

Variant 1: Saturn 4 Ultra 16K + Mercury Plus V3.0
Here you get Elegoo's high-end printer with impressive 16K resolution, large print volume and fast printing speed - perfect for precise models, miniatures or functional prototypes. The whole thing is combined with the compact Mercury Plus V3.0, which elegantly combines washing and curing in one device. Ideal if you're short on space but don't want to compromise on post-processing.
Variant 2: Saturn 4 Ultra 16K + Mercury XS Bundle
Need more power for larger projects? Then go for the Mercury XS Combo! Here you have separate devices for washing and curing - extra volume, more flexibility and perfect results even with large-format prints. The dream team for ambitious makers!
Technical specifications:
| Saturn 4 Ultra 16K | Saturn 4 Ultra | |
| Printing technology | MSLA | |
| Printer size | 327.4 x 329.2 x 548 mm | |
| Printer weight (net) | 16.1 kg | 14.5 kg |
| Build volume | 211.68 x 118.37 x 220 mm | 218.88 x 122.88 x 220 mm |
| LCD | 10 inch 16K monochrome LCD | 10 inch 12K monochrome LCD |
| XY resolution | 14 x 19 ¦Ìm (15120 x 6230 pixels) | 19 x 24 ¦Ìm (11520 x 5120 pixels) |
| Light source | COB + Fresnel collimation lens, 405 nm | |
| Z-axis accuracy | 0.02 mm | |
| max. printing speed | max. 150 mm/h | |
| Device display | 4 inch capacitive touchscreen | |
| Interfaces | USB, WiFi | |
| Slicer | CHITUBOX, SatelLite | |
| Voltage, power | 100-240V 50/60 Hz 24V 6A | |
This set includes:
-
Saturn 4 Ultra 16K from Elegoo
16K resolution for breathtaking details
Content: 1 pc
- 16K monochrome LCD screen
- Tilt-release technology
- Light source with Fresnel collimating lens
- Resin heating tank
- Intelligent mechanical sensor alarms
-
Mercury XS Bundle from Elegoo
Wash & Cure set including handheld UV lamp
Content: 1 pc
- Uniform, targeted curing
- Handheld UV lamp
- Curing size ? 200 x 260 mm
- 360¡ã curing platform
Downloads

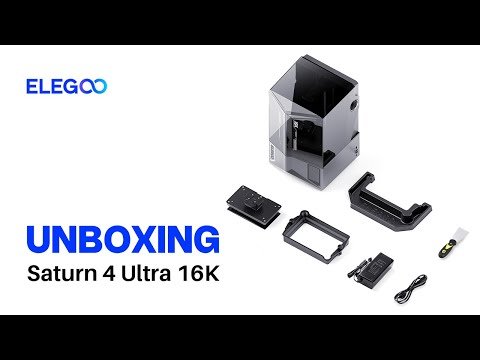

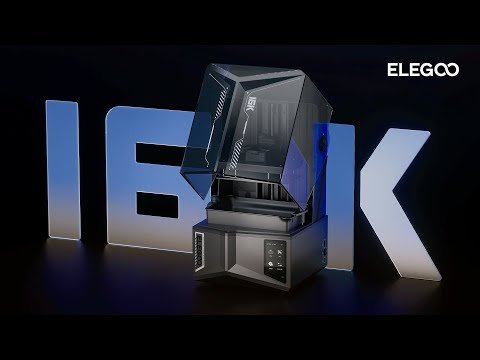

Product video
