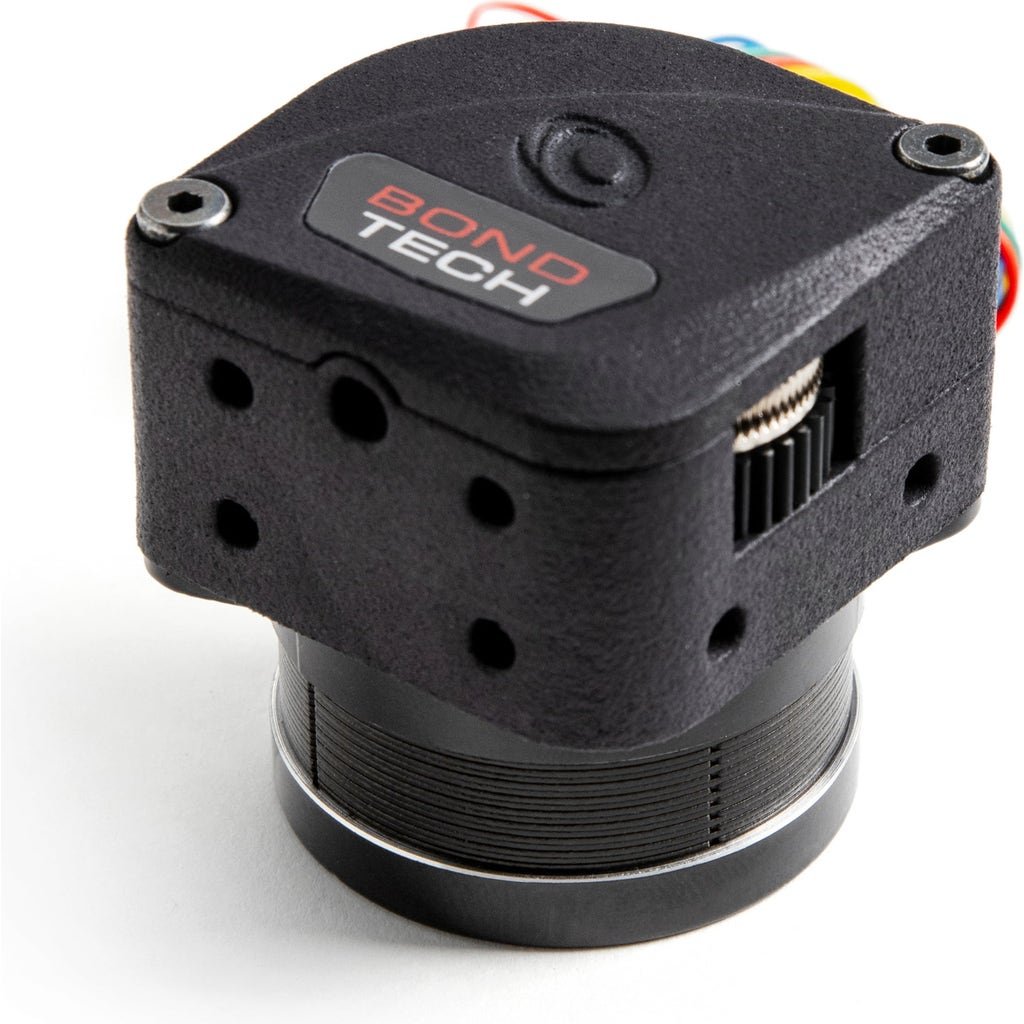

LGX Lite V2 Large Gears Extruder

The Bondtech LGX Lite V2 is a filament feeder based on the LGX Large Gears eXtruder that uses Bondtech's new Dual Drive Technology with larger drive gears.

ATTENTION!

? This extruder only supports 1.75mm filaments.

This extruder does not allow a mounting plate between the motor and the extruder.

LGX Lite V2 features:

• Larger drive wheels for increased filament grip,
• Filament pre-tension lever for repeated results,
• Drive wheel maintenance window for easy cleaning,
• Compact, lightweight and centered filament path for more performance and better compatibility,
• Multiple mounting hole patterns for easy and flexible installation,
• Compatible with round Nema14 stepper motors,
• Undyed and uncoated nylon housing in black design,

With

• Tighter tolerances,
• Micro form factor,
• Better workmanship,
• More stable 2-part housing,
• Additional attachment point,
• Improved filament grip,
• Precisely centered stepper motor.

3D printed PA12 case

The extruder housing parts are printed with glass-filled polyamide 12. This durable material ensures maximum strength, precision and higher temperature resistance.

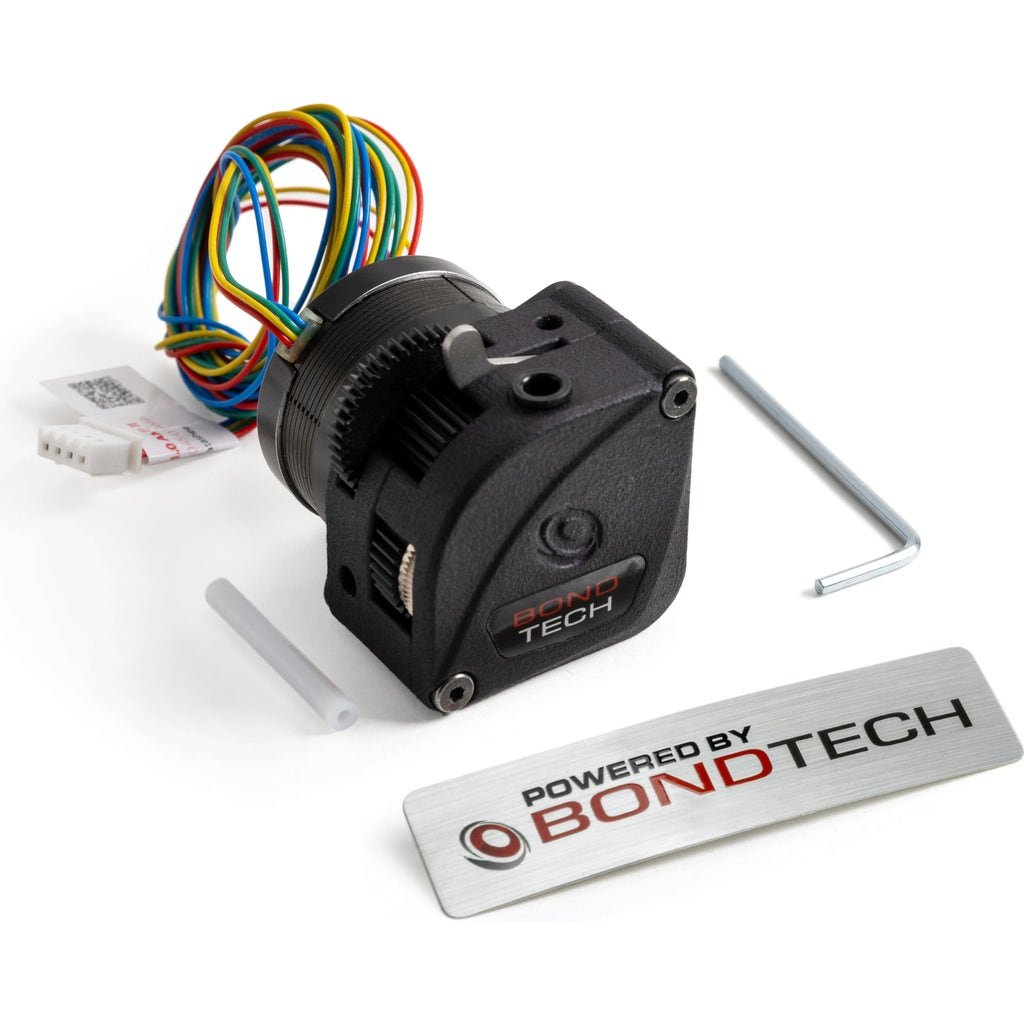

Included:

• 1x LGX Lite V2 feeder
• 1x LDO Nema14 round 20mm pancake stepper motor
  • 1 m long connection cable
  • with JST-XH 4-pin connector
• 1x 2 mm hex key (recommended tool)
• 1x Powered By Bondtech sticker
• 1x plug-in collet
• 1x 30 mm PTFE tube for use in the PTFE tube adapter
• 8x M3 square nuts to reinforce the mounting holes
