库存 件
In stock

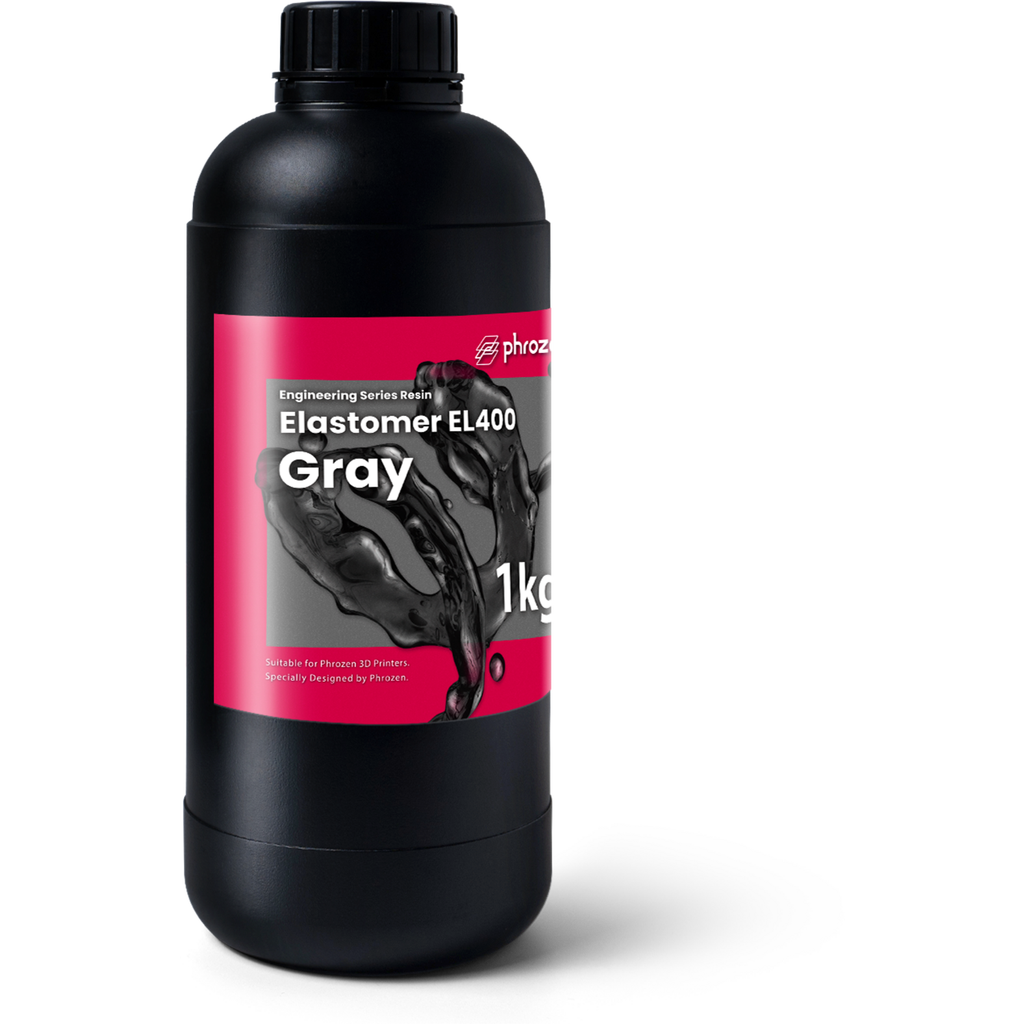

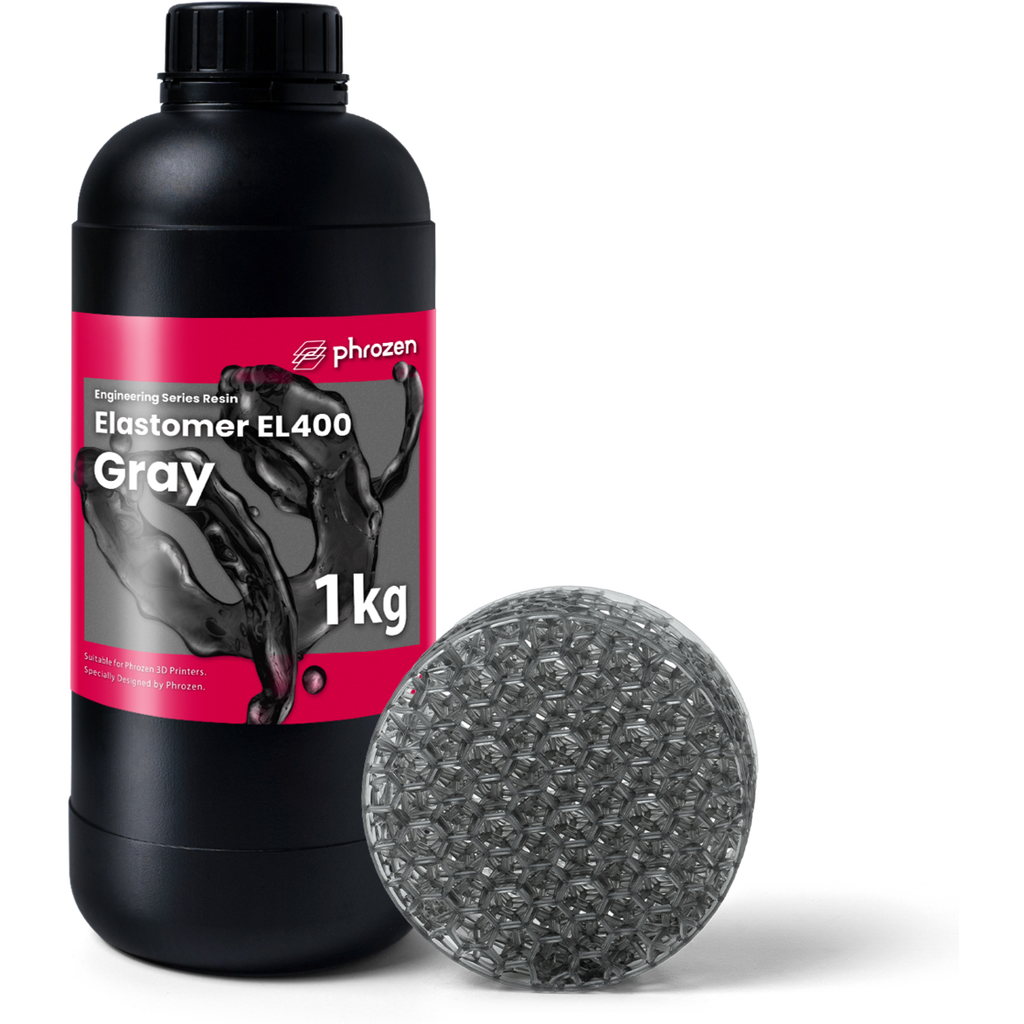

EL400 Resin Gray, 1.000 g
Elastic & tough resin for iterative prototyping
$115.50
⚡Free shipping on orders over $70.⚡
Related:
-
-
Wash V2 Resin Cleaner, 5.000 g
Low-odour cleaning agent for easy post-processing
$61.74($61.74 / lbs) -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Features & Advantages
- Rubber-like, highly flexible & tear-resistant
- Shore hardness of 70-75A
- Elongation of 391 %
- High rebound resilience
Description
The Phrozen EL400 Resin is a rubber-like, highly flexible and tear-resistant material for fast, iterative prototyping in 3D printing.

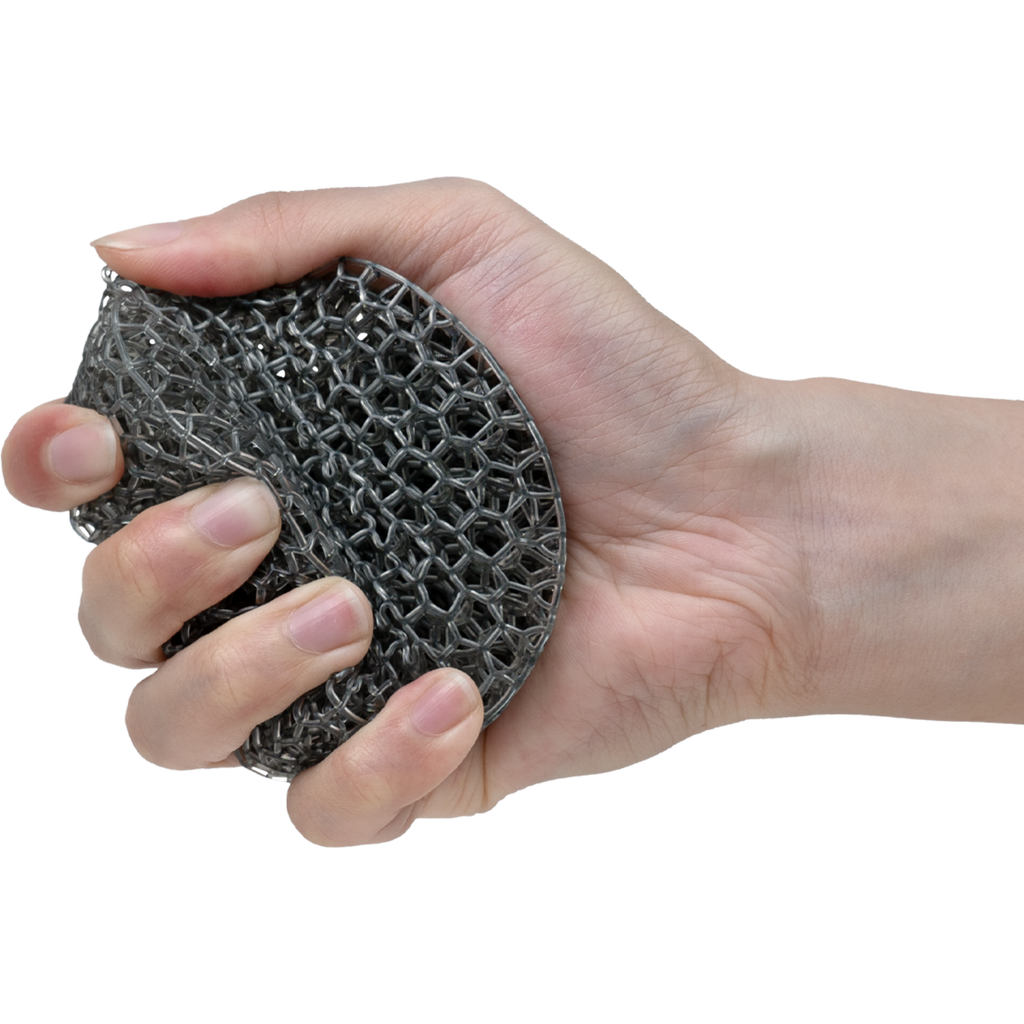

The resin has a Shore hardness of 70-75A and an elongation of 391%, combining elasticity with toughness to the optimum degree. The material also has a higher rebound resilience compared to other resins, which means that it returns to its original shape after being deformed.
Ideal for printing:

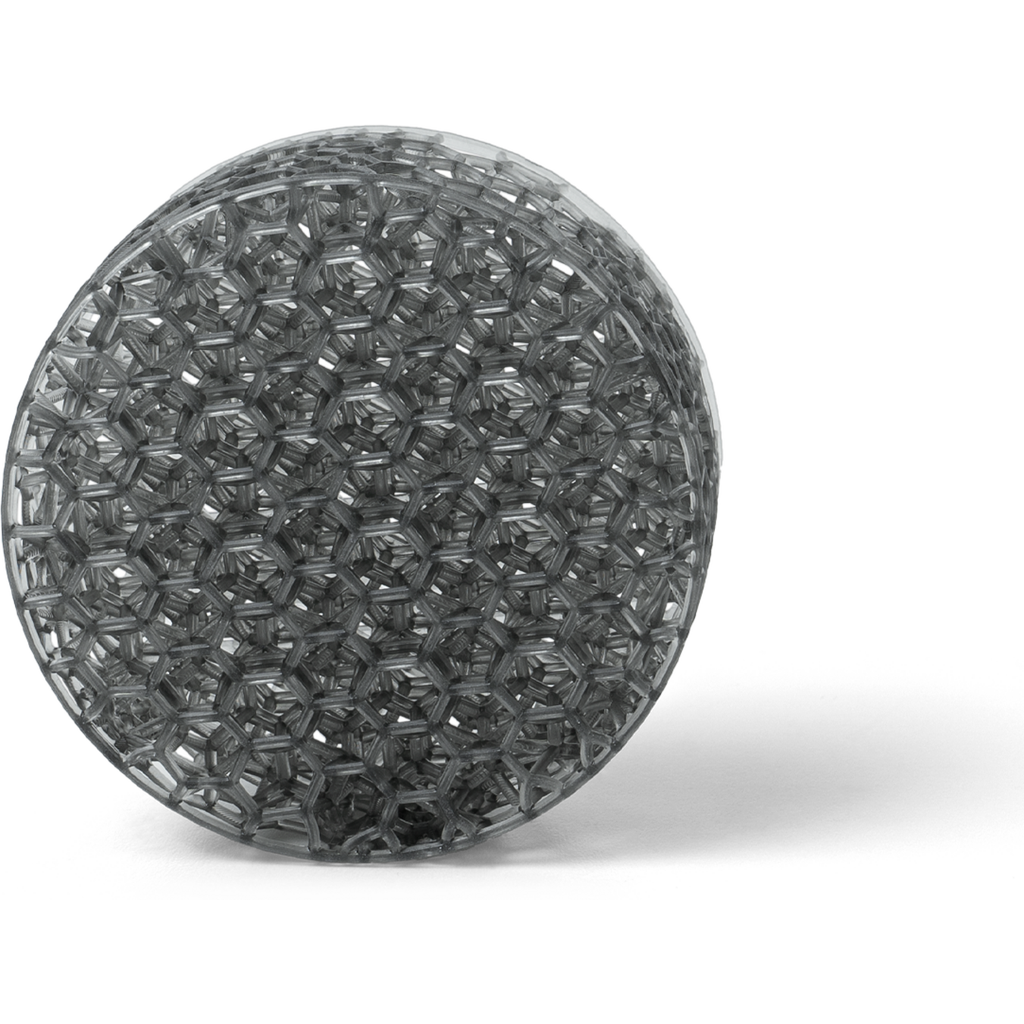

- Lattice structures used in midsoles, saddles and cushioning;
- Rubber-like prototypes of grips, seals and gaskets
Technical specifications:
| Density | 1.04 g/cm3 |
| Viscosity | 2300-3000 mPas (at 25 °C) |
| Surface hardness | 70-75 Shore A |
| Tensile strength at break | 6.3 MPa |
| Elongation at break | 391 % |
| Tear strength | 22 KN/m |
| Ross Flexing Fatigue | > 60,000 cycles |
| Bayshore rebound resilience | 40 % |
Downloads
