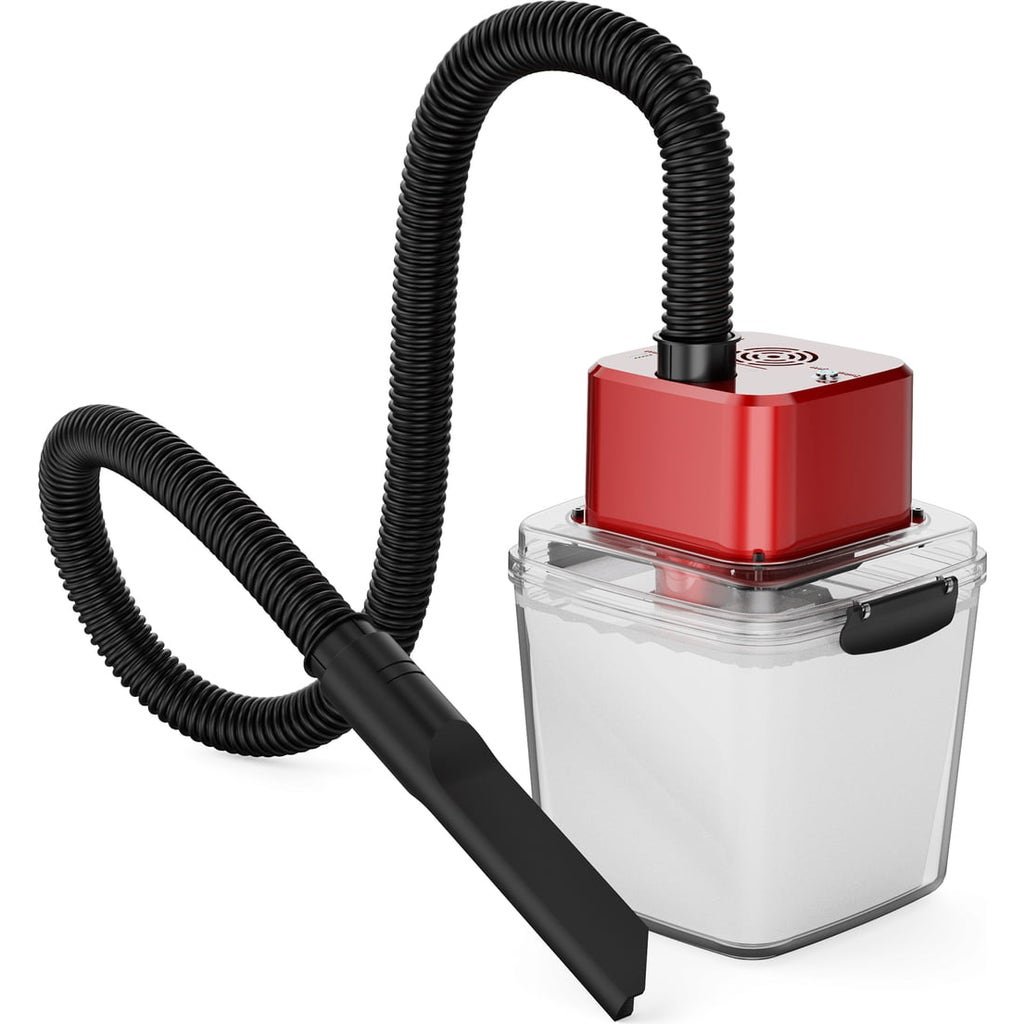

The CNC Vacuum Kit from Two Trees is an indispensable tool for working with CNC milling machines. The CNC vacuum cleaner ensures a clean and safe working environment by sucking dust, chips and other contaminants from the work surface. With a brushless motor and a maximum speed of 50,000 rpm, the easy-to-use vacuum cleaner has excellent suction power.
Exciting features:
- An automatic start-stop function,
- An overheat protection function on the motor ensures that the motor switches off automatically as soon as it has reached the maximum permissible temperature; the function does not allow the device to be switched on before the temperature falls into a safe range - a restart is unavoidable,

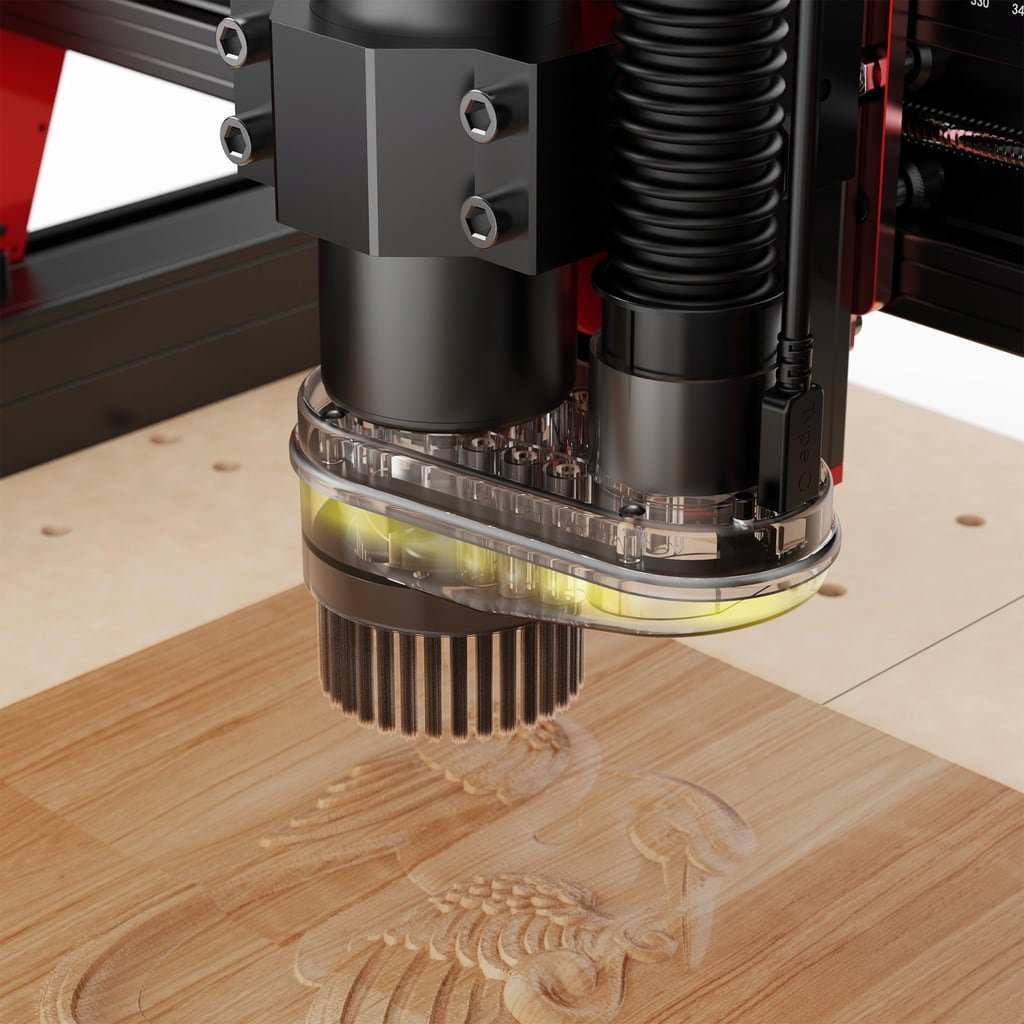

- The dust extraction opening is equipped with an LED light to allow the engraving to be observed even in poorly lit environments,
- A negative ion generator ensures clean air,
- A cotton filter ensures that the exhaust air does not contain any dust after filtering,
- The vacuum cleaner bag has a capacity of 2.8 L and has a zipper so that dirt can be removed without having to replace the bag immediately,
- A transparent bottom shell makes it easy to see when the vacuum cleaner bag is full,
- When not in use with the CNC machine, the Vacuum Kit can easily be used as a household vacuum cleaner,
- With a dust collection port, the suction power of the vacuum cleaner is up to 6000 Pa.
Specifications:
| Material |
Plastic |
| Device size |
170x170x240mm |
| Net weight |
1.4kg |
| Motor |
Brushless motor |
| Type of dust collection |
Dust bag with zipper |
| Number of gears |
2 |
| Operating time |
48 hours |
| Power supply |
24V 3A power supply |
| Total power consumption |
70W |
| Power consumption in standby mode |
1W |
| Nozzle types |
Crevice nozzle, a type of dust brush nozzle |
| Features |
Automatic start-stop function
LED light
Negative ion generator |
| Compatible models |
Two Trees TTC 450, Two Trees TTC 450 Pro |
| Suitable spindle |
775 Motor, 500W spindle |
