[MOQ: 10KG] Electrically Conductive Composite PLA, 1,75 mm / 500 g

Electrically conductive PLA with high breaking strength

$4.99

⚡Free shipping on orders over $70.⚡

More information regarding shipping & delivery

Features & Advantages

Conductive
Excellent layer adhesion
Increased breaking strength
Higher melt flow

Item no. PP-CDP11705

Categories: 3D printer filament, PLA filament for all FDM 3D printers

Product information & technical details

Item no.: PP-CDP11705
Manufacturer No.: CDP11705
Manufacturer: Protopasta
Diameter: 1,75 mm
Product type: PLA Filaments
Color: Black
System: Spool
Recommended processing temperature: 195 - 225 °C
Recommended heating temperature: 60 °C

Description

Protopasta's Electrically Conductive PLA is a special conductive PLA that can be used to electrify printed parts for simple circuits and touch-sensitive devices. The material has excellent layer adhesion, increased breaking strength and higher melt flow.

Tip: For best printing results, Protopasta recommends using a 0.6mm nozzle and a printing temperature of 210-230¡ãC. Nevertheless, the composite filaments can also be easily printed with a 0.4 mm nozzle. A heated bed is not required.

Technical specifications:

Volume resistivity of cast resin (not 3D printed)	15 ohm-cm
Volume resistance of 3D printed parts along the layers (x/y)	30 ohm-cm
Volume resistance of 3D printed parts against layers (z)	115 ohm-cm

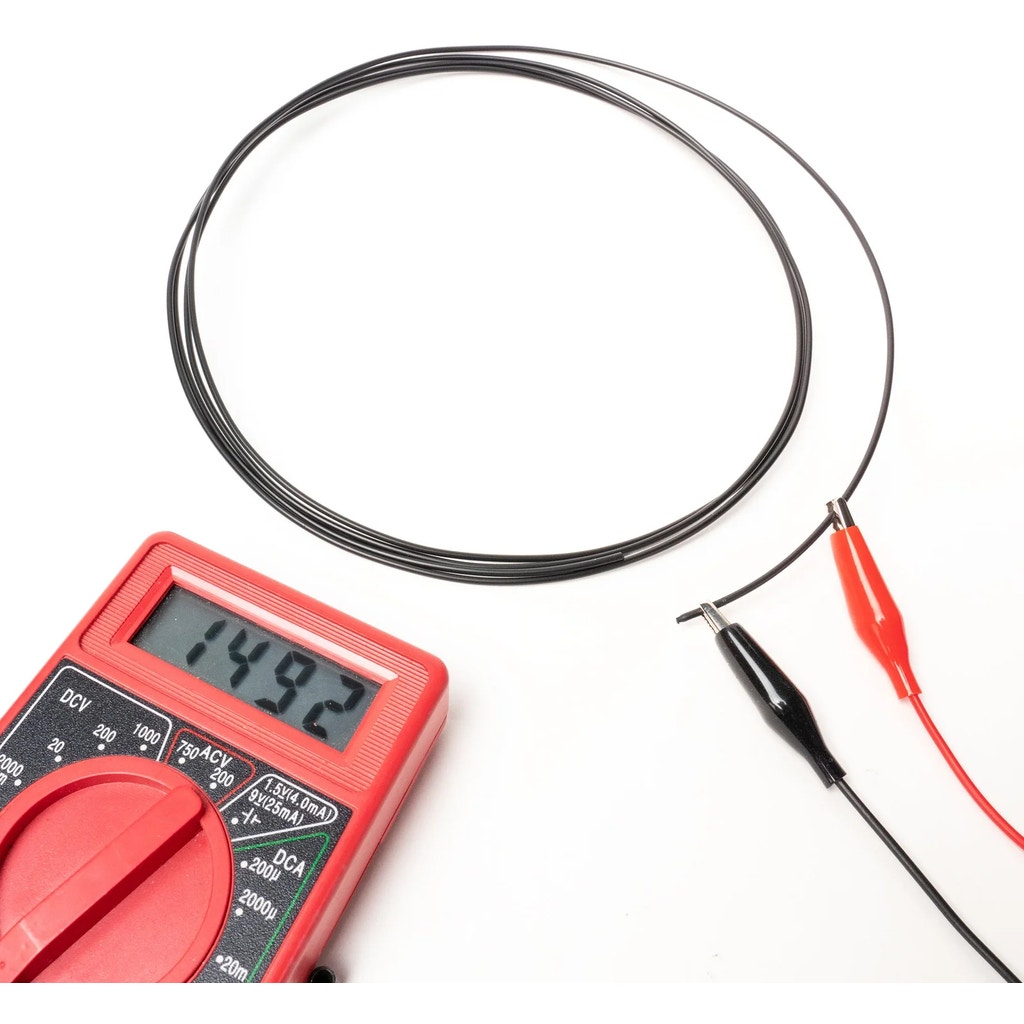

Resistance of a 10cm long 1.75mm filament	2.5-3.5 kOhm
Resistance of a 10cm long 2.85mm filament	800-1200 ohms
